MEP803A, DN4M, LPW4 Overhaul Gasket Kit Onan 186-6213 or 186-6212, Lister Petter 657-34281, NSN 5330-01-381-2837.
Please note, there are discrepancies in the Onan product numbers listed in the military manuals. Onan 186-6213 is found in the DN4M manuals, but Cummins Onan lists this as a 2 cylinder kit. Note that this kit is for 4 cylinders only for the MEP803A generator, DN4M and LPW4 engines.
This is the overhaul kit and includes everything in the Onan 186-6211 decarbon kit.

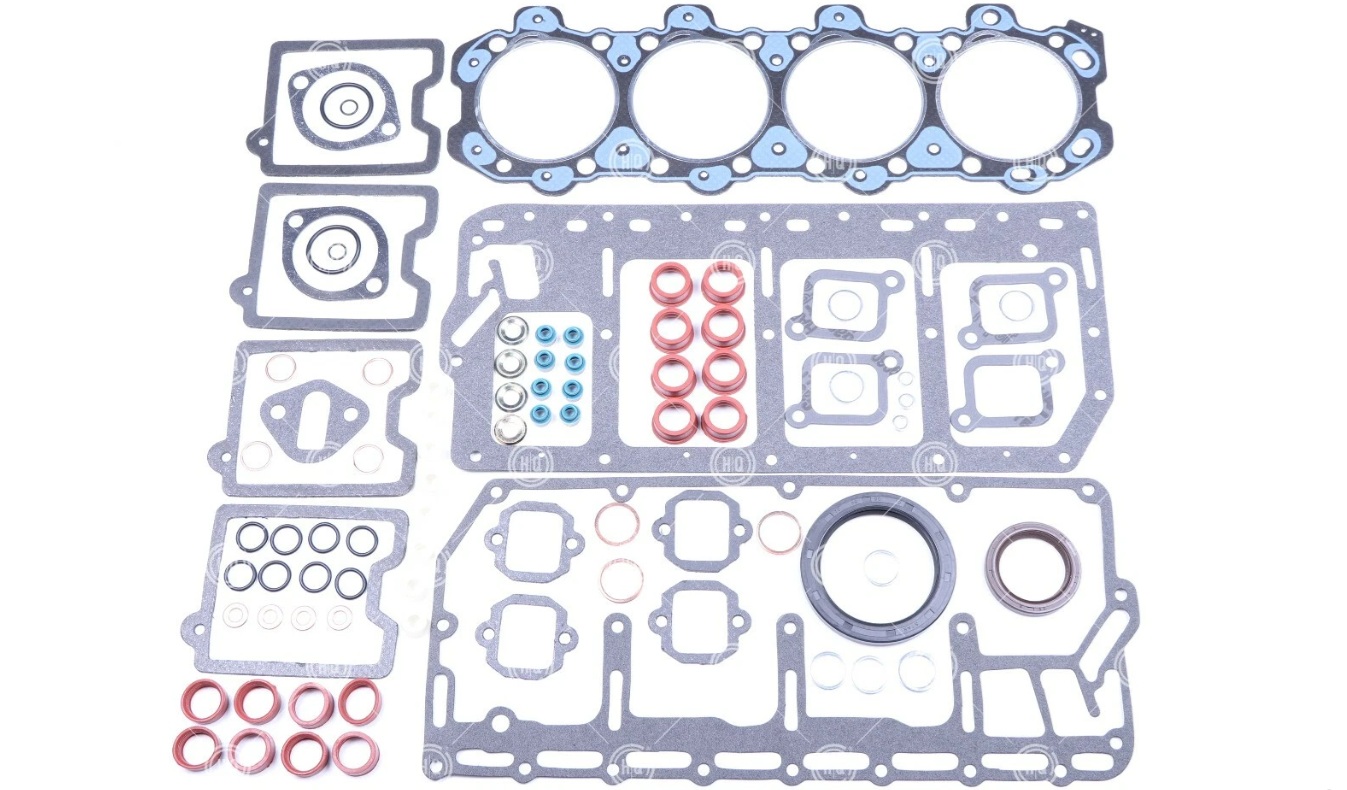

This kit includes the following:
- 186-6202 intake manifold gasket
- 186-6206 exhaust manifold gasket
- 186-6190 thermostat gasket
- 186-6180 mounting plate gasket front
- 186-6182 mounting plate gasket rear
- 601-20691 preformed packing
- 186-6163 special non-metallic seal
- 186-6017 plate gasket
- 186-6012 crankcase gasket
- 186-6129 preformed packing for governor
- 186-6102 cylinder head push rod tube
- 201-30261 non-metallic grommet
- 186-6147 gear end gasket
- 186-6065 spacer plate (.38 mm thick)
- 186-6066 spacer plate (.50 mm thick)
- 186-6063 plain encased seal
- 186-6173 fuel injector flat washer
- 186-6257 cylinder head valve plain seal
- 186-6101 cylinder head flat washer
