New Alternative MEP002A-MEP003A Rheostat Variable Resistor Wirewound, Improved Power Rating Than Milspec

Name: New Alternative MEP002A-MEP003A Rheostat Variable Resistor Wirewound, Improved Power Rating Than Milspec
SKU: 5905-00-051-7677
Price: 169.00 USD
Availability: OutOfStock

$169.00

Out of stock

SKU: 5905-00-051-7677 Category: Generator and Engine Parts Tags: MEP002A Generators and Parts, MEP003A Generators and Parts, Military Diesel Generator Meters

Description

This is a new modern replacement for the original rheostat used on MEP002A and MEP003A and many Onan generators. Please note that this has double the power rating to handle more heat, which is a common reason for failure. This unit is not sealed, so it should not be subjected to moisture. Please note the different measurements in this unit. A knob is included for easy installation.

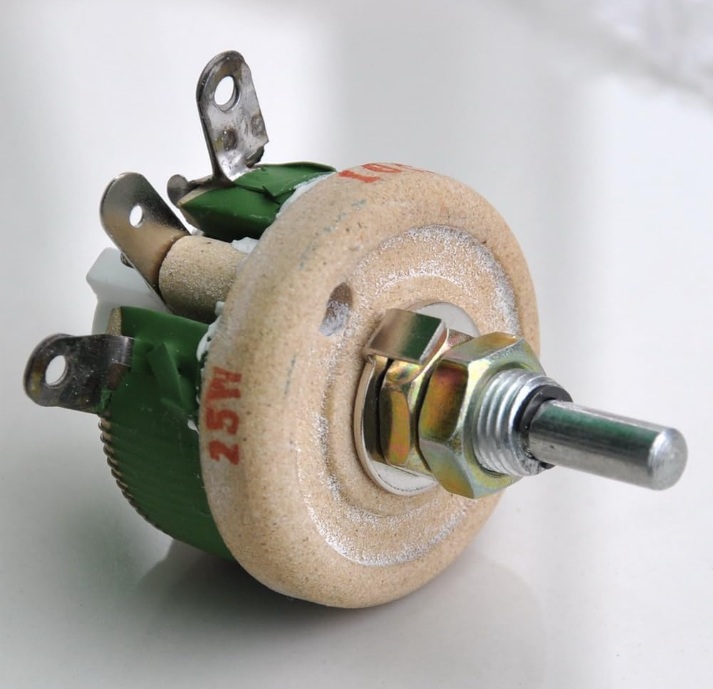

25 Watts High Power Ceramic Wirewound Potentiometer / Rheostat
Quantity: 1 piece

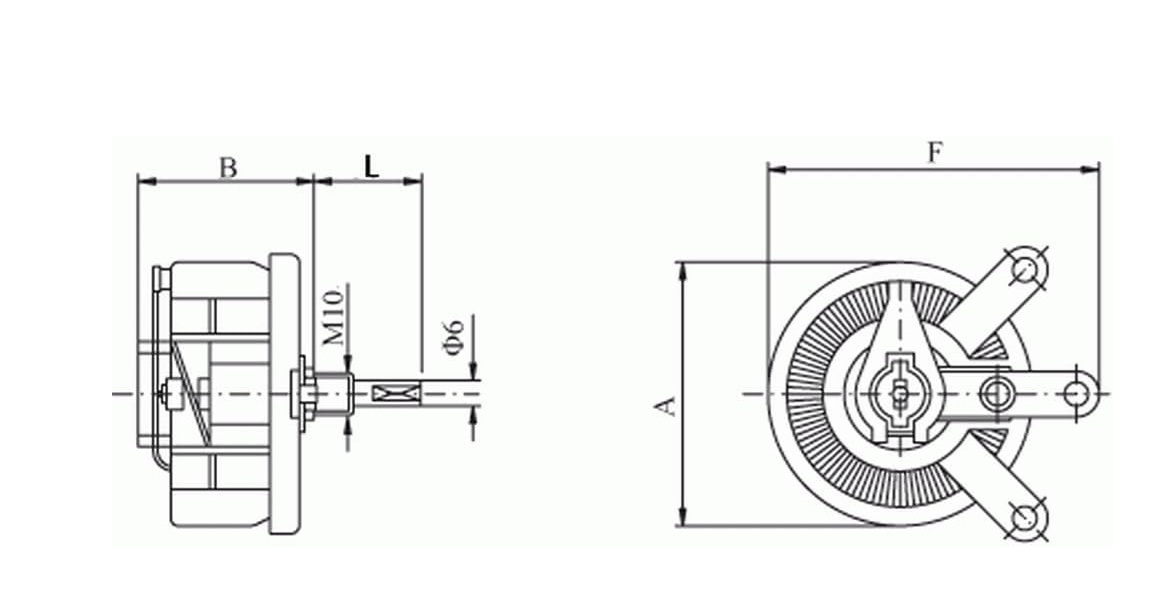

Size: A=43mm, B=40mm, F=50mm, L=24 +/-1mm
Shaft Diameter: 6mm
100% New

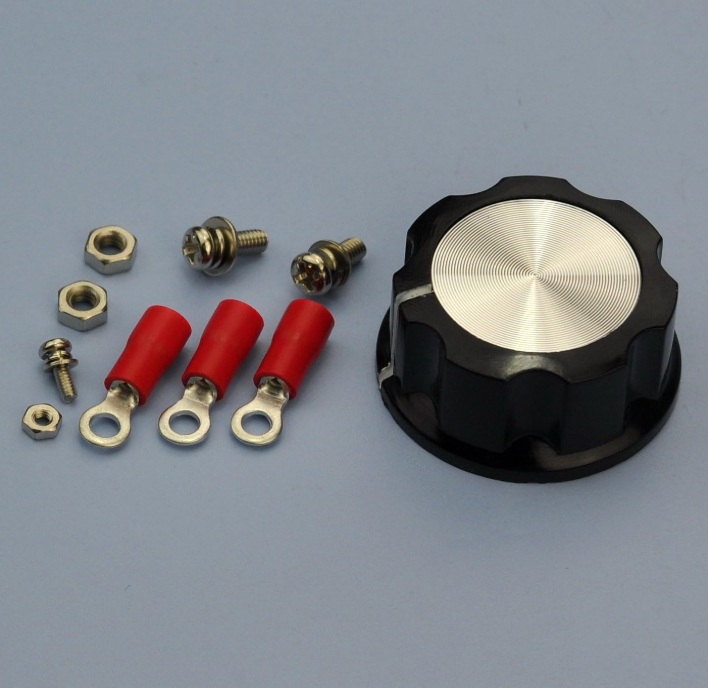

Knob included

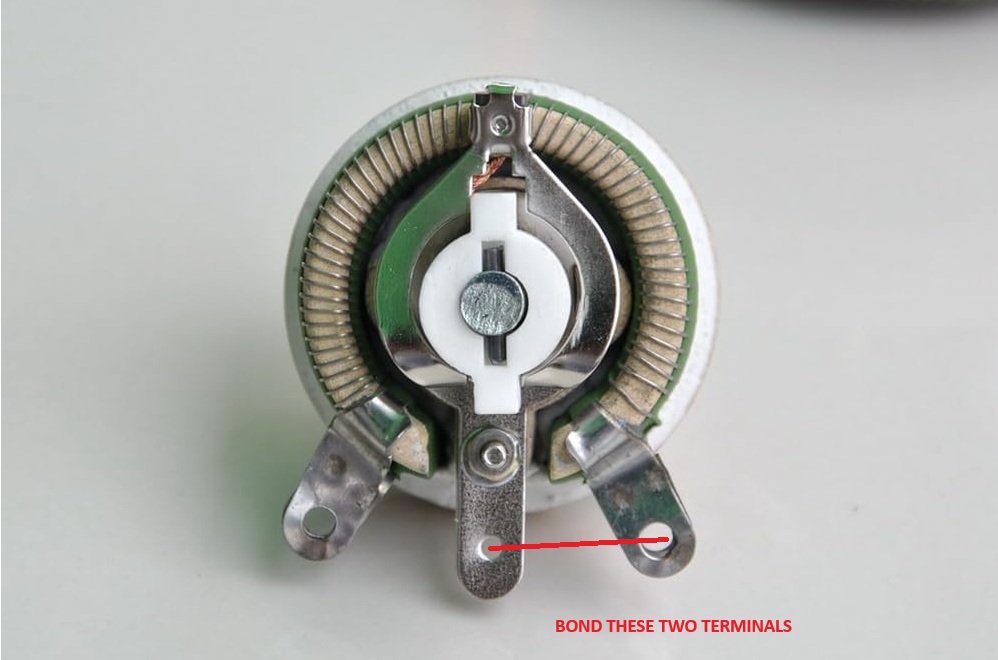

You will need to bond the central (middle) terminal to the right terminal as is done in the milspec variant (your original part).
